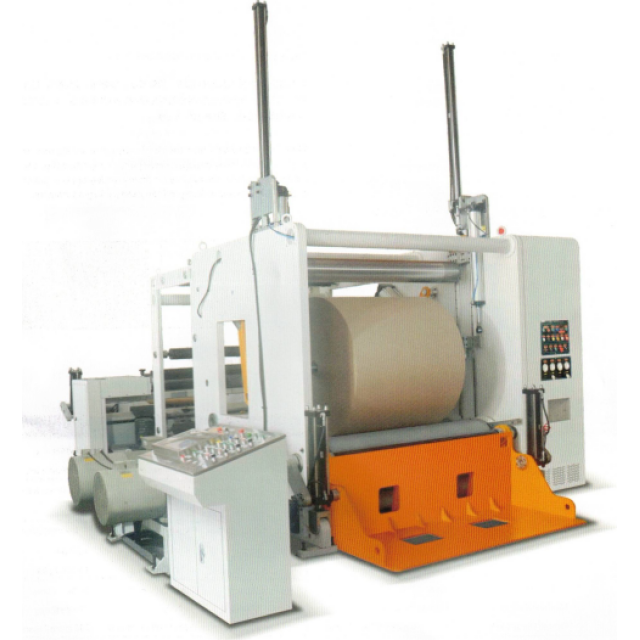

Ground rail type slitter 1800

用途;
Purpose;
本机适用于, 纸张分切及复卷特点;
This machine is suitable
for paper slitting and
rewinding;
主机部分
1 Host part
设备主机采用钢板材料为中心 二次加工定型处理
1 The equipment host adopts steel plate material as the center for secondary
processing and finalization
传动主轴采用无缝钢管加工而成 表面硬化渡洛动平衡加工处理
2 The drive spindle is machined from seamless steel pipe, and the surface
is hardened by Duluo dynamic
balance processing
过料导辊采用铝合金导辊 橡胶辊完成
3 The feeding guide roller is completed with aluminum alloy guide roller and
rubber roller
主机传动方式为同步带 同步轮传动
4 The main engine is driven by synchronous belt and synchronous wheel
放料部分
2 Discharging part
放料机构为无轴独立式放料架
1 The discharging mechanism is a shaftless independent discharging rack
放料采用无轴液压自动上料 有效节省人工 操作方便 简单
2 Unloading adopts shaftless hydraulic automatic loading , which can
effectively save labor , and is convenient and
simple
配装有调偏棍装置一套 可通过手轮调节
3 Equipped with a set of deflection adjusting device, which can be adjusted by
hand wheel
放卷采用气动刹车制动
4 Unwinding adopts pneumatic brake braking
纠边采用蝙蝠品牌 实现对材料的跟边跟线
5 The edge correction adopts Bat brand to realize the heel line of the material
3 收料部分
3 Material receiving part
收料轴 3 英寸气胀轴一条
1 One 3-inch inflatable shaft for the receiving shaft
锁紧方式为手动充气方式控制
2 The locking mode is controlled by manual inflation mode
切刀采用 圆刀分切 圆刀 10 把
3 The cutting knife adopts a round knife to cut 10 round knives
配装吸废边装置一套
4 Equipped with a set of waste edge suction device
卸料采用液压自动卸料
5 Unloading adopts hydraulic automatic unloading
4 电器部分
4 Electrical part
主机采用变频器 1 只
1 One frequency converter is used for the main engine
主机电机 1 只
2 1 main engine motor
3LPC 采用模拟量控制 伺服电机推动
3LPC uses analog control servo motor to drive
4 采用进口PLC 实现精准和稳定控制功能 只需要输入原材料的厚度及宽带直径和速度。接
下来的工作全部电脑自动计算完成
4. It is only necessary to input the thickness of raw materials, broadband
diameter and speed to achieve accurate and stable control function with imported
PLC. The next work is automatically calculated by the computer
主要技术参数
Main technical parameters
1 机械有效宽度
1 Mechanical
effective width
1800mm
2 放卷直径
2 Unwinding diameter ¢500-1200mm
3 收卷直径
3 Winding diameter ¢1200mm
4 纸同内孔
4 paper with inner
hole
3#
5 分切速度
5 Slitting speed 200m/min
6 最小分切宽度
6 Minimum cutting
width
100MM
7 总功率
7 Total power 40KW
8 机械外形尺寸
8 Mechanical
dimensions
5800X4200X2700
标准型配置
Standard configuration
PLC
PLC
德国西门子
Siemens Germany
主机 富田电机 1 套
1 set of main machine
FUKUTA motor
domestic
变频器 1 套
Frequency converter 1 set 国产
domestic
触摸屏
touch screen
北京昆仑通态
MCGS
气刹车
Air Brake
国产
domestic
纠边
Edge correction
普利源
Pausource
气缸
Cylinder
亚德客
AirTAC
轴承
Bearing
NSK(日本)
NSK (Japan)
随机配件
Attached accessories
1 内六角扳手一套
1 set of Allen wrench
5 油枪
5 Oil gun
2 活动扳手
2 Adjustable wrench
6 气枪
6 Air gun
3 一字螺丝刀
3 Slotted screwdriver
7 气嘴
7 Air nozzle
4 十字螺丝刀
4 Cross screwdriver
浙江盛驰机械科技有限公司 地轨式分切机 1800 型
Zhejiang Shengchi Machinery Technology Co., Ltd
地址; 浙江省瑞安市锦湖街道礁石工业区二路 9 号
Address; No. 9, 2nd Road, Jiaoshi Industrial Zone, Jinhu Street,
Rui'an City, Zhejiang Province
