suitable for PAPER Slitting of kraft paper master rolls for products such as paper knives and forks, straws, paper cups, paper bags, paper ropes, etc. Large diameters are suitable. Simple structure, affordable price, touch screen control, convenient and quick. Hydraulic feeding, save time and labor.
Maximum width 1.3m or 1.6m to 2.2m, source manufacturer, can be customized according to customer needs

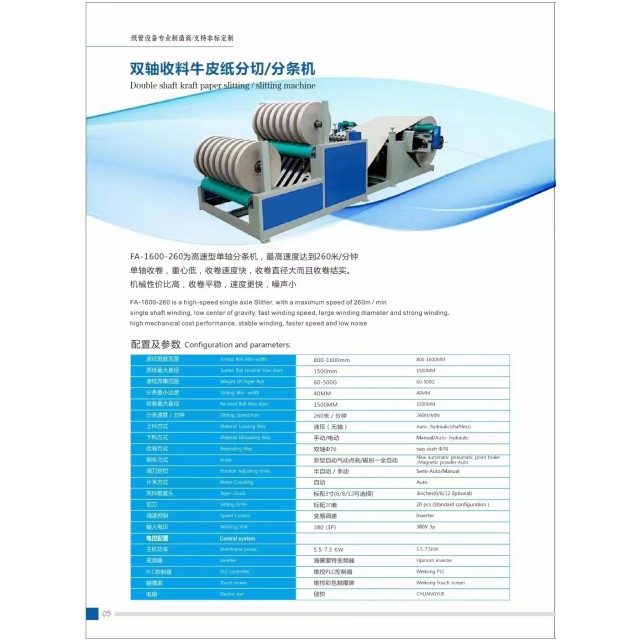

双轴收料牛皮纸分切/分条机 Double shaft kraft paper slitting / slitting machine
FA-1600-260为高速型单轴分条机，最高速度达到260米/分钟单轴收卷，重心低，收卷速度快，收卷直径大而且收卷结实。机械性价比高，收卷平稳，速度更快，噪声小
FA-1600-260 is a high-speed single axle Slitter, with a maximum speed of 260m/min
single shaft winding, low center of gravity, fast winding speed, large winding diameter and strong winding. high mechanical cost performance, stable winding, faster speed and low noise。
|
配置及参数 |
Configuration |
配置及参数 |
Configuration |
|
原纸宽度范围 |
Jumbo Roll Max-width |
2200mm |
|
|
原纸最大直径 |
Unwind Max-diameter |
1500mm |
1500MM |
|
原纸克重范围 |
Weight Of Paper Roll |
60-500G |
60-500G |
|
分条最小边宽 |
Slitting Min -width |
40MM |
40MM |
|
收卷最大直径 |
Rewind Max-diameter |
1500MM |
1500MM |
|
分条速度/分钟 |
Slitting Speed/min |
260米/分钟 |
260M/MIN |
|
上料方式 |
Material Loading Way |
液压(无轴)可选配 |
Auto hydraulic |
|
下料方式 |
Material Unloading Way |
手动/电动 |
Manual/Auto- hydraulic |
|
收卷方式 |
Rewinding Way |
双轴中76 |
two shaft 76 |
|
刹车方式 |
Brake |
新型自动气动点刹 |
auto pneumatic point brake |
|
调刀定位 |
Position Adjust Knife |
半自动/手动 |
Semi-Auto/Manual |
|
计米方式 |
Meter Counting |
自动 |
Auto |
|
夹料锥度头 |
Taper Chuck |
标配3寸(6/8/12可选择) |
3inches(6/8/12 0ptional) |
|
切刀 |
Slitting Knife |
标配20套 |
20 pcs (Standard ) |
|
调速控制 |
Speed Control |
变频调速 |
Inverter |
|
输入电压 |
Working Volt |
380 (3P) |
380V 3p |
|
电控配置 |
Control system |
|
|
|
主机功率 |
Maintrame power |
7.5 KW |
7.5KW |
|
变频器 |
Inverter |
库马克变频器 |
Kumark inverter |
|
PLC控制器 |
PLC controller |
西门子PLC控制器 |
Siemens PLC |
|
触摸屏 |
Touch screen |
昆仑动态彩色触摸屏 |
MCGS/Weinview |
|
电眼 |
Electric eye |
创悦 |
CHUANGYUE |
GOOD PRICE KRAFT PAPER ROLL SLITTING MACHINE
