Fiber PVC insulating material rewind machine horizon type

This machine is suitable for high thickness 1.2mm insulating material PVC Jumbo roll cutting rewinding and various materials.
Using imported PLC to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.

Online Inquiry




Main technical parameters

Machine Usage:
Cut the non-woven fabric substrate of the drum with a width of less than 1600mm into several rolls, and the narrowest one can be cut into 20mm edging strips.
Machine features:
This machine is a specially developed equipment for slitting, with simple operation, precise slitting, stable operation, and tension control for unwinding, upper winding, and lower winding; The operating speed can be freely adjusted; Automatic meter measurement for cutting length; Automatic deviation correction devices can be selected for unwinding to correct irregular coils and reduce material waste; Equipped with a fan and waste edge blowing pipe, it can automatically blow out waste edges.
Machine configuration:
control system

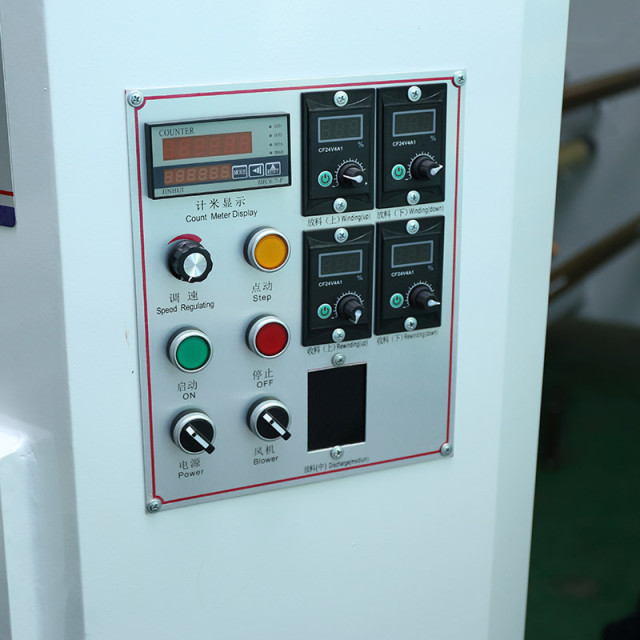

Centralized installation of control buttons, flexible and convenient operation.
Unwinding section
1. Automatic deviation correction and unwinding mechanism, equipped with a constant tension system.
2. Mechanical unwinding rack unwinds the coil, electromagnetic brake controls tension, and can be equipped with deviation correction.
Unwinding tension control
The unwinding tension is controlled by a magnetic powder brake and can be manually adjusted.
Striped section
The circular knife actively cuts.
Equipped with a roller meter for easy calculation of the winding length.
Roll up section

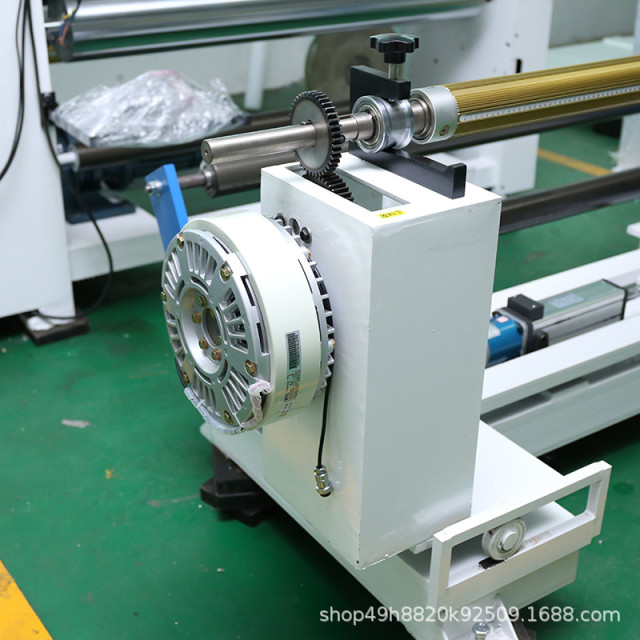

Double slip differential shaft winding is designed based on the characteristics of non-woven fabric materials. Due to the elasticity of non-woven fabrics and the fact that they are not as thick and uniform as thin films, ordinary inflatable shafts are used for winding. When cutting wide strips, the effect is not significant, but when cutting narrow strips, some rolls are loose and some rolls are tight, resulting in uneven winding. By using a slip shaft for winding, the paper tube can have a certain slip on the shaft, ensuring that the tightness of each roll is the same. It can also achieve good winding uniformity when cutting narrow strips.
Winding tension control
The winding tension is controlled by a magnetic powder clutch, which calculates the tension based on the actual outer diameter, making the tension control more precise and stable, and the operation more convenient. Control the tension of the upper and lower winding separately.
Waste edge treatment
Equipped with a fan and waste edge blowing pipe, it can automatically blow out the waste edges of materials.
Product technical parameters:
Model SCWS-1300 SCWS-1600
Unwinding width 1300mm 1600mm
Unwinding diameter Φ 1400mm Φ 1400mm
Minimum cutting width 30mm 30mm
Winding diameter Φ 600mm Φ 600mm
Cutting speed 30-400m/min 30-400m/min
Overall power 10.5kw 12.5kw
Applicable power supply 380V/50Hz 380V/50Hz
Machine weight 3500kg 4000kg
External dimensions of the host 3500 × three thousand × 1720mm 3500 × three thousand and six hundred × 1720mm
