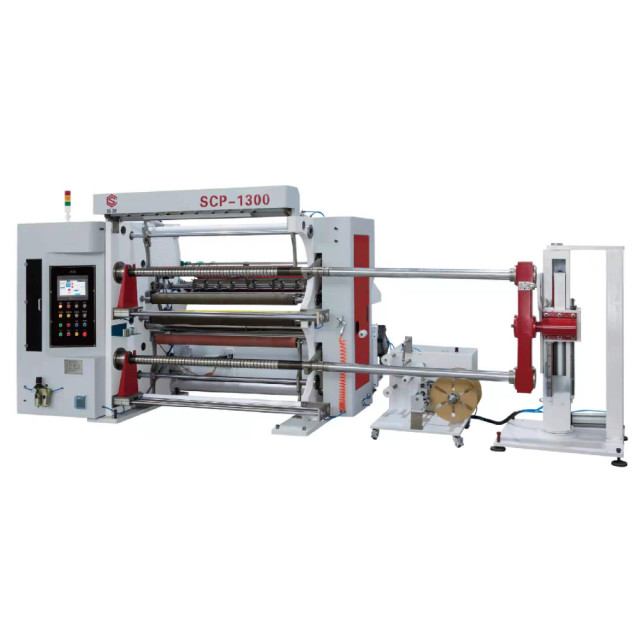

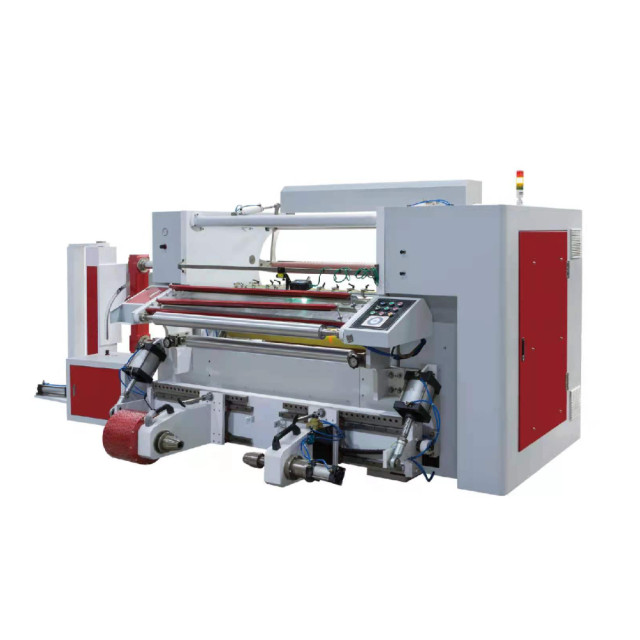

SCP- 1300 plastic films slitting rewind machine 500m/Min speed for PVC OPP PE PET laminated pharmacy optical

with max. speed 500m/min.
This machine is suitable for PET OPP CPP PE non-woven fabric, PVC and optical material film, pearlised film, wrap around label film,
Using imported PLC to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.

Online Inquiry


Technical Parameter:

1 Material width

1300mm

2 material diameter

800mm

3 Rewinding diameter

600mm

4 paper with inner hole

3# 2# 1#

5 cutting speed

10-500m/min

6 minimum slits

25-1300MM

7 total power

20 kw

8 size

2900*2100*mm 2050mm

This machine is suitable for PET OPP CPP PE non-woven fabric, PVC and optical material film, paper and various materials.

support 1600mm 1800mm or customize materials width sltting machine making

MaterialCharacteristics:

A. Host part

1. 4 main engines synchronous belt synchronous wheel transmission

2.  automatically push materials

3.  laser light toposition  paper tubes

B. Material UNWIND section

1. The material automatically  shaft-less pneumatic uploading

2.  adjustable deflection rod device  adjustedby a handwheel

3. Magnetic powder brake  for unwinding

4. Edge correction device PAUSOURCE brand ( can becustomize BST)

5.  one 3 inch shaft for uploading, tranforming device available into 6 inch

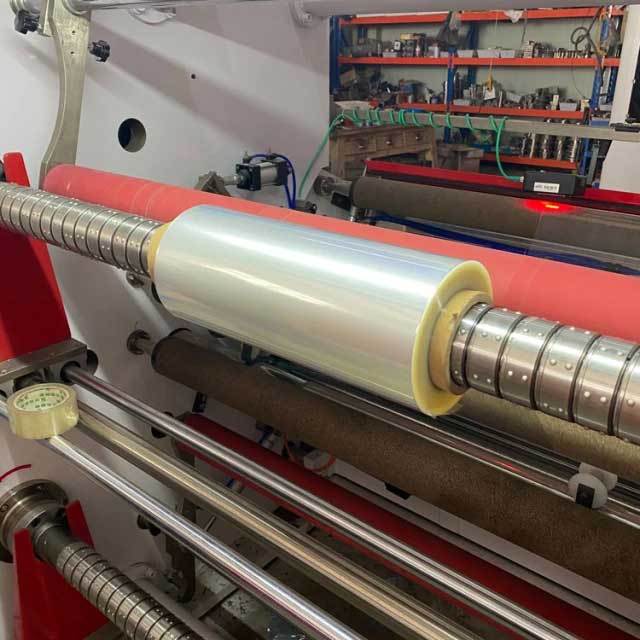

C. Material receiving section

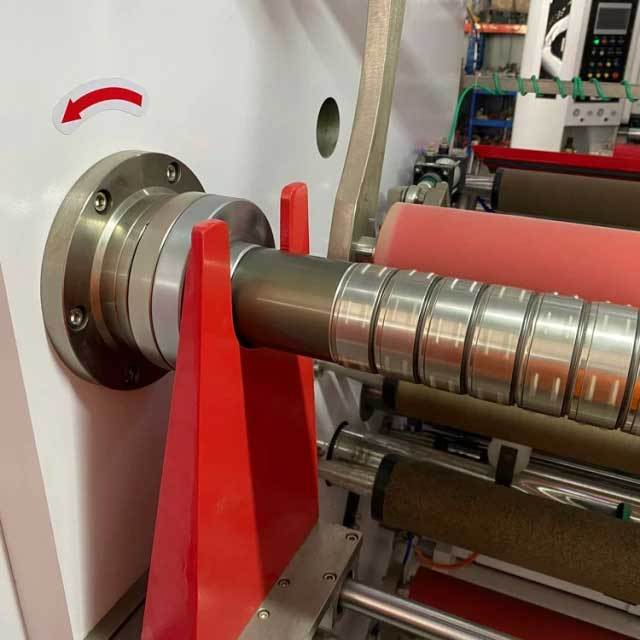

1. Two 3-inch pneumatic slipdifferential  receiving shafts

2. Winding tension electrician  valve controlled

OPTIONAL

3. Automatic pushing

4. Waste blowing edge trimming winder

5. Rotating sub-frame for unloading

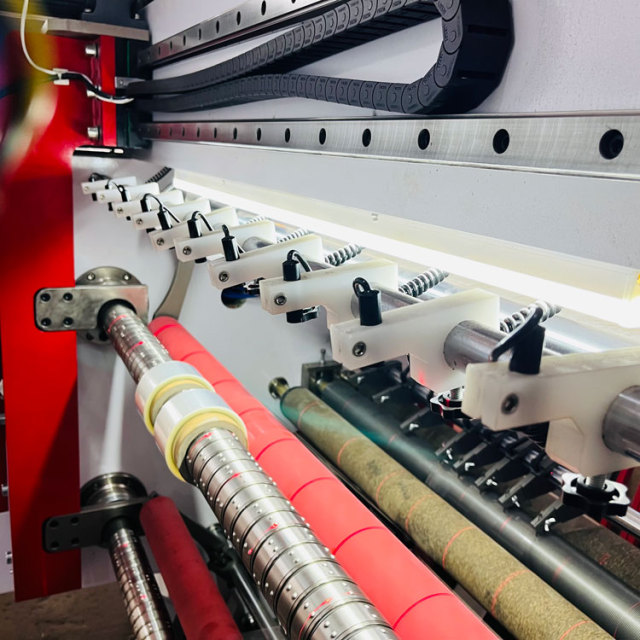

6. Circular or flat knives 10 round knives

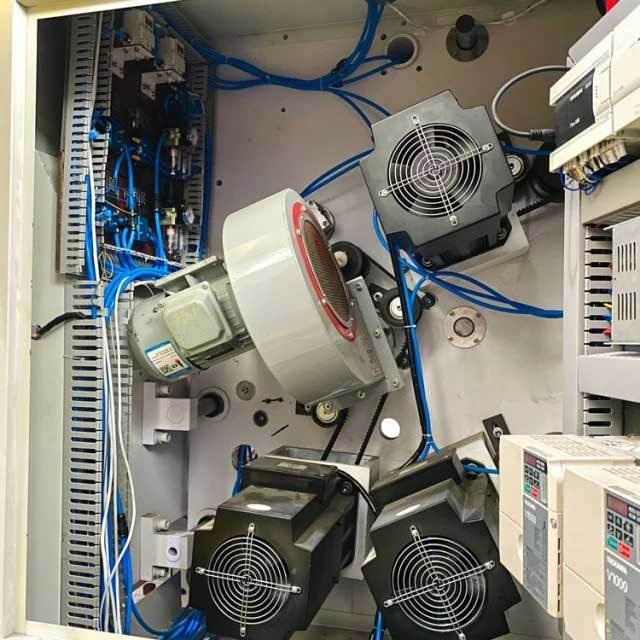

D. Electrical parts

1. Host  1 drives

2. Main driving motor 1 pcs

3. Winding with 2pcs servo motors

4. 3 YASKAWA Frequency converters

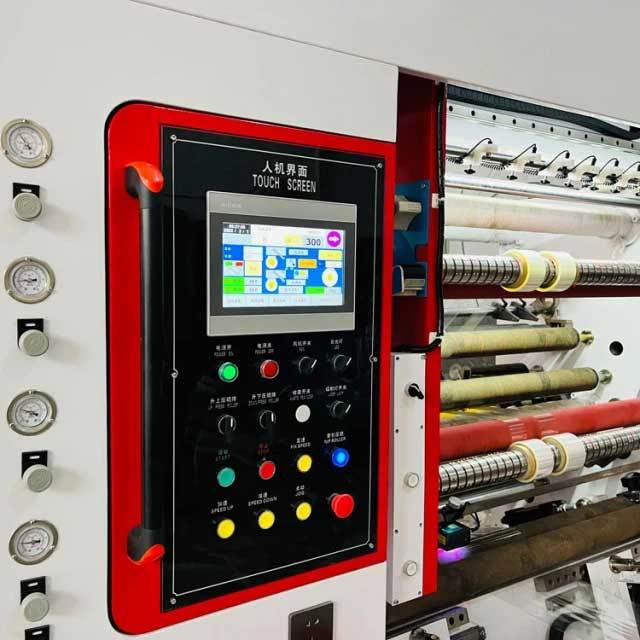

5. SIEMENS brand PLC uses analog control to drive servo motors

to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.

All subsequent tasks are automatically calculated by the computer.
