This machine is suitable for Kraft paper tipping paper various roll slitting into smaller rolls, PET OPP CPP PE non woven fabric PVC and optical material film roll paper and various materials.
Using Differential slip shafts, Camera Correction Device(follow line/edge), imported PLC to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.

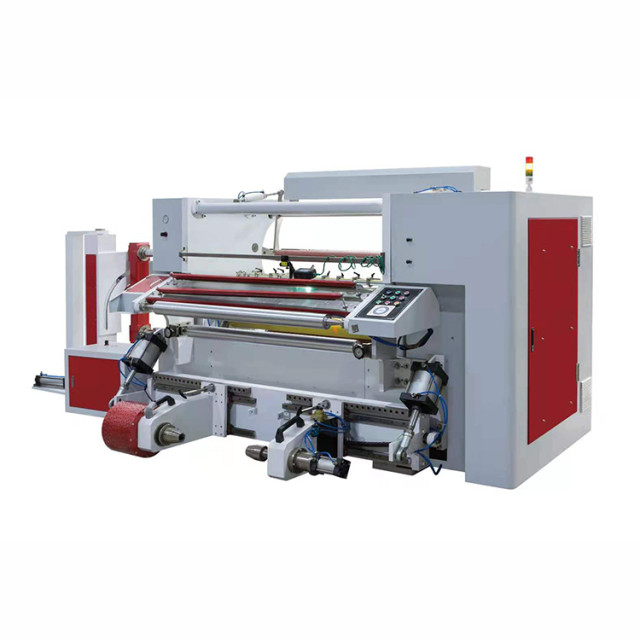

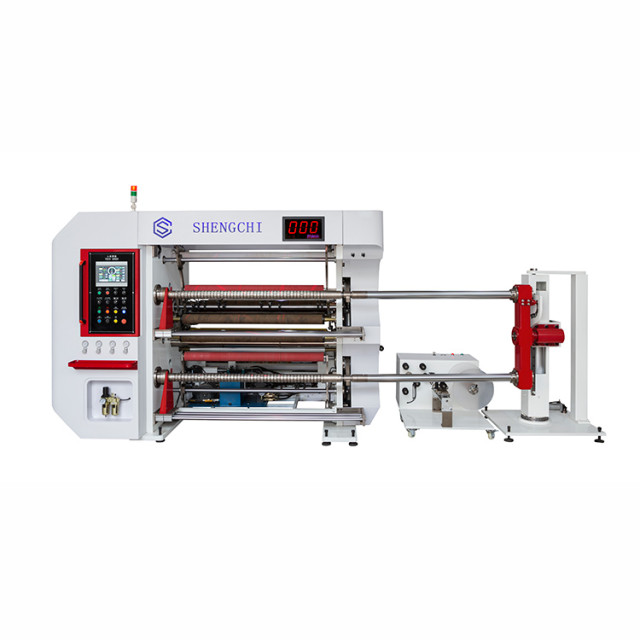

SCZP-1300 back loading double side Paper roll slitting machine/ slitter rewinder
Paper roll slitting machine/ slitter rewinder
Main technical parameters:
|
Material width |
1300mm |
|
Material diameter |
800mm |
|
Winding diameter |
600mm |
|
Papertube inner hole |
3 # 6 # |
|
Slitting speed |
400m/min |
|
MIN SPLIT |
25-1300MM |
|
Total power |
15 kw |
|
Mechanical dimensions |
1890X2700X1600 |
|
PLC |
SIEMENS GERMANY |
|
Servo Motor |
ZHIMA/ FUKUTA |
| Frequency Converter | YASKAWA Japan |
|
Touch screen |
Weinview Taiwan |
|
Edge correction device |
Pausource Taiwan |
|
Cylinder |
Airtac Taiwan |
|
Bearing |
NSK Japan |
Characteristics
A. Host part
10 laser lamp on paper tubes

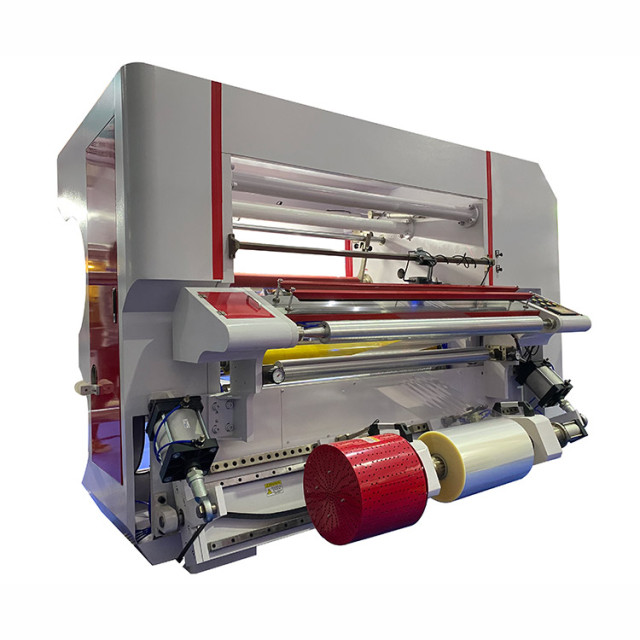

B. Material discharge section
1. The feeding mechanism is a connected feeding rack
2. shaftless hydraulic uploading raw materials
3. adjustable deflection rod can be adjusted through a handwheel
4. Magnetic powder brake for unwinding
5. Edge correction material by PAUSOURCE or BST brand (other brands can be chosen separately)

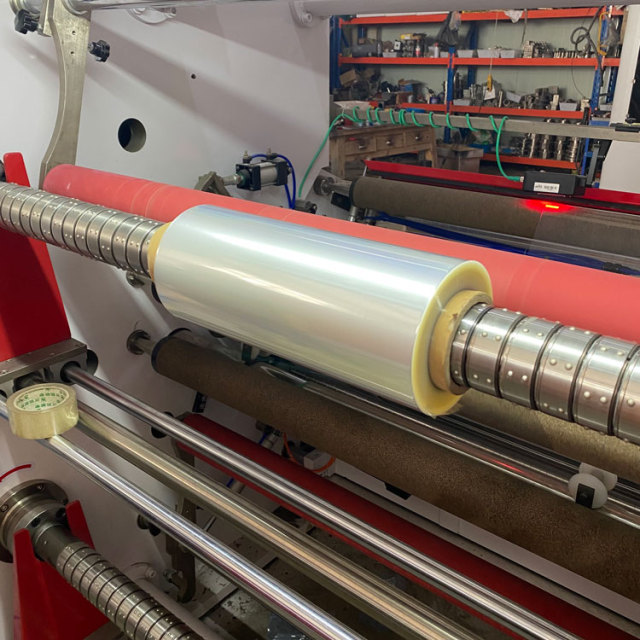

C. Material receiving section
1. with 3-inch pneumatic inflation differentrial shafts for unwind 2 Pcs
2. The locking method is controlled by method
3. The winding tension by electrician valve
4. circular knives or Straight knives 10 pcs standard
Optional
5. waste blowing edge Trimming winder is Optional
6. Rotary subframe for unloading finished roll is Optional

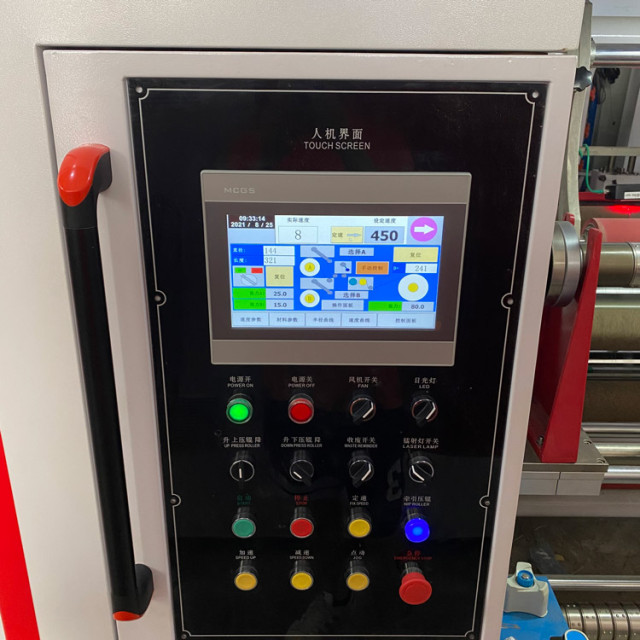

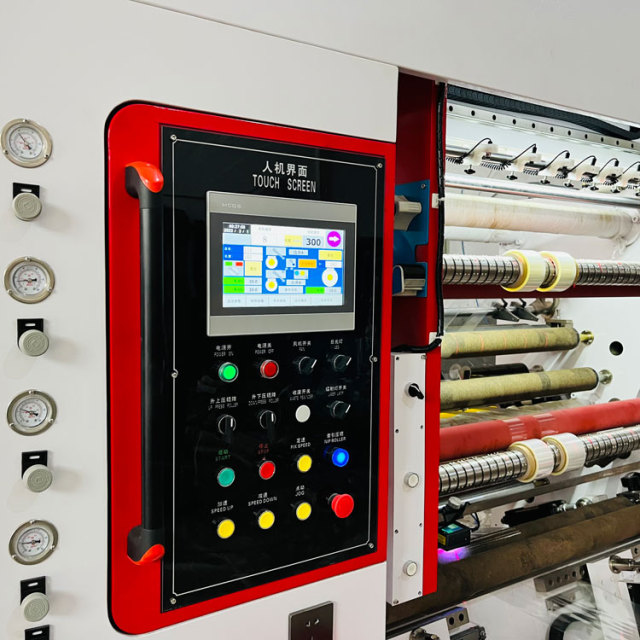

D. Electrical parts
1. The host adopts a frequency converter
2. 3 SERVO motors
3. Winding using 3 frequency converters
5. PLC control
Using imported PLC to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.
All subsequent tasks are automatically calculated by the computer.
