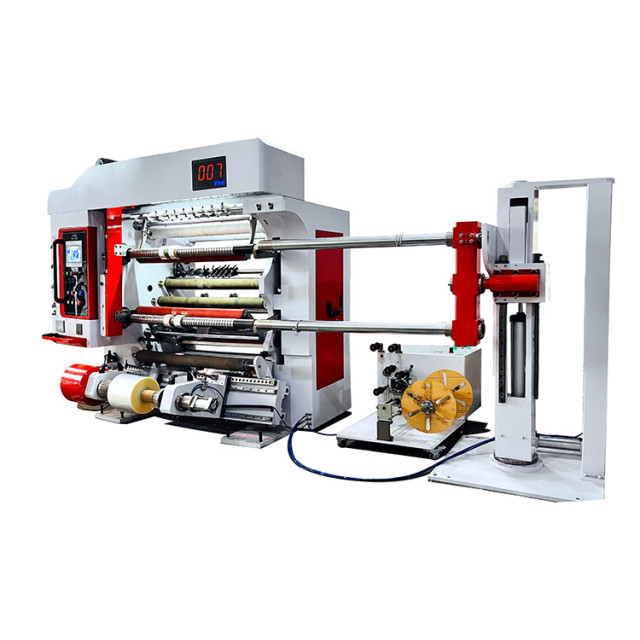

SCT-1300 500m/min Foil laminated paper films foil slitting machine front loading high speed

500-600m/Min speed.
This machine is suitable for PET OPP CPP PE non-woven fabric, PVC and optical material film, paper and various materials.
Using imported PLC to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.

Online Inquiry


Main technical parameters:

1. Material width

1300mm

2. Material diameter

800mm

3. Winding diameter

600mm

4 paper with inner hole

3 # 6 #

5 slitting speed

10-500m/min

6 MIN SPLIT

25-1300MM

7 Total power

15 kw

8 Mechanical dimensions

 2200X2800X1840

PLC

Mitsubishi, Japan

Servo Motor

Fukuta Taiwan

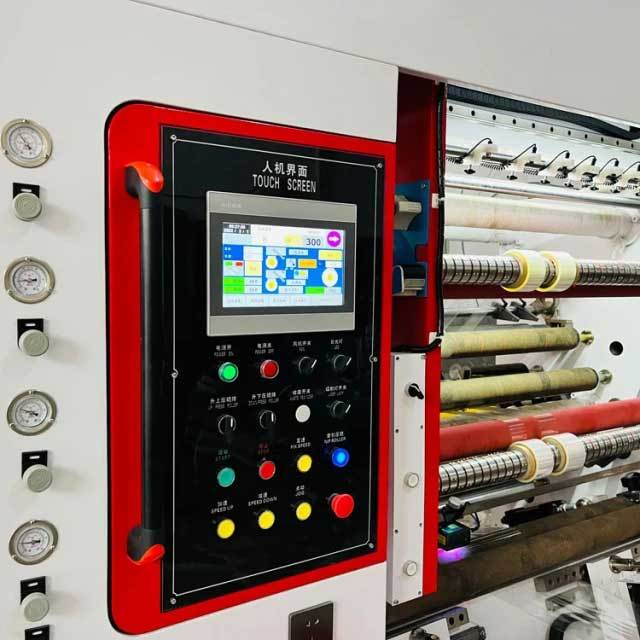

Touch screen

Weinview Taiwan

Edge correction device

Pausource, Taiwan

Cylinder

Airtac Taiwan

Bearing

NSK  Japan


Material Characteristics:

A. Host part

  laser lamp on paper tubes

B. Material discharge section

1. The feeding mechanism is a connected feeding rack

2.  shaftless hydraulic uploading raw materials

3. adjustable deflection rod can be adjusted through a handwheel

4. Magnetic powder brake for unwinding

5. Edge correction material by PAUSOURCE or BST brand (other brands can be chosen separately)

C. Material receiving section

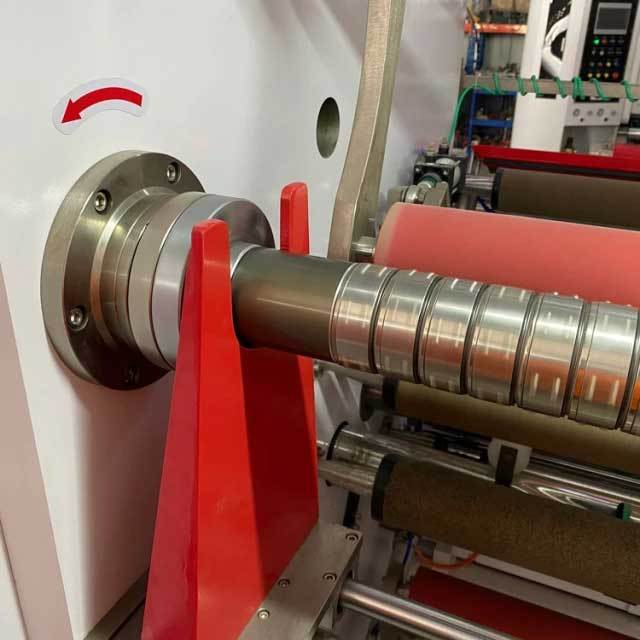

1. with 3-inch pneumatic inflation differentrial shafts for unwind 2 Pcs

2. The locking method is controlled by  method

3. The winding tension by electrician  valve

4. circular knives  or Straight knives 10  pcs standard

Optional

5. waste blowing edge Trimming winder is Optional

6. Rotary subframe for unloading finished roll is Optional

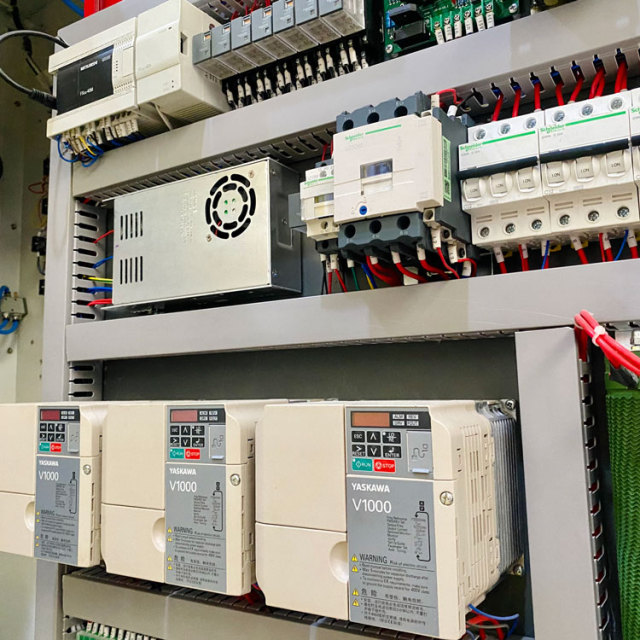

D. Electrical parts

1. The host adopts a frequency converter

2. Main machines, 1  SERVO motor

3. Winding using 2 frequency converters

4. 2 SERVO motors for rewind

5. PLC  control

Using imported PLC to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.

All subsequent tasks are automatically calculated by the computer.

Random Accessories:

1 set of Allen wrenches 5 oil gun

2 adjustable wrench 6 air gun

3 Slotted screwdriver 7 Air nozzle

4 Phillips screwdriver
