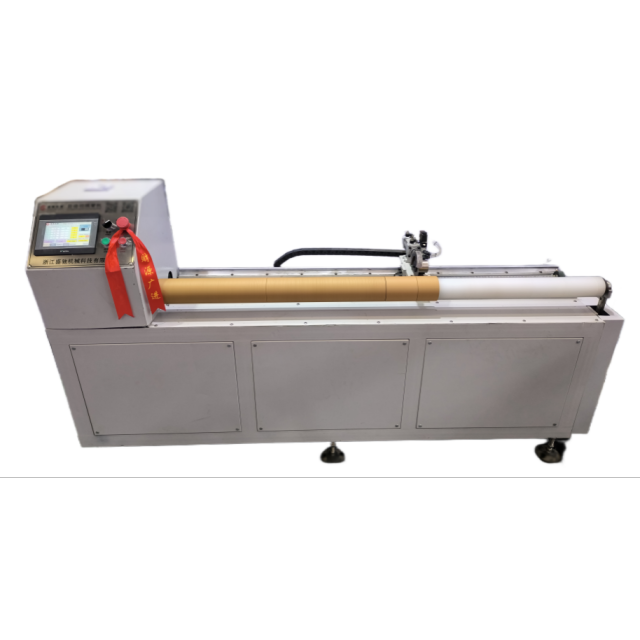

High-precision paper core/tube cutting machine is suitable for re-cutting paper tubes and paper cores with wall thickness up to 15mm. The PLC-controlled fully automatic paper core cutting machine adopts a computer control system. All working parameters can be set on the control panel (touch screen type).
1. Computer parameter setting makes the machine work more accurately and efficiently
2. The asynchronous motor makes the machine tool cutting more precise; the error is less than 0.5mm.
3. The paper tube is fixed by an automatic chuck, and only the paper tube rotates during the cutting process. Cutting lengths from 10 mm to 1500mm, wall thickness from 5mm to 15mm.
Product parameters:
高精度纸芯/管切割机适用于壁厚达15mm的纸管和纸芯的再切割。 PLC控制的全自动纸芯裁断机采用电脑控制系统。所有工作参数可在控制面板上设置(触摸屏式)。
1.电脑参数设定，使本机工作更精确、更有效率
2.异步电机使机床切割精度更高;误差小于0.5mm。
3.纸管由自动夹头固定，裁切过程中只有纸管转动。切割长度从10 mm到1500mm，壁厚从5mm到15mm。
产品参数：
|
型号 |
model |
1500型自动切管机 |
1500 paper core cutting machine
|
|
内径 |
inner diameter |
76mm |
76mm |
|
纸管长度 |
Paper tube length |
1500mm |
1500mm |
|
切管长度 |
Cut pipe length |
10-1500mm |
10-1500mm |
|
装卸方式 |
Loading and |
手动上下料 |
Manual loading and unloading |
|
最大纸芯厚度 |
Maximum core |
15mm |
15mm |
|
切管速度 |
Pipe cutting speed |
1.2秒1片 |
1 tablet in 1.2 seconds |
|
电源供应器 |
Power Supplier |
380V60HZ3相 |
380V60HZ3 phase |
|
价格 |
price |
Special rate first |
FOB 2380 USD 17000CNY) |
|
出货日期 |
Shipping date |
收到定金30天 |
30 days after receiving deposit |
|
付款期限 |
expiration of pay |
100%定金，装运前尾款付清 |
100% deposit, |
|
保修 |
Warranty |
保修一年（计从机器到工厂） |
One year warranty |
Product configuration:
Weide servo motor
Ball screw drive
Weikong PLC control system
Hengyi pneumatic accessories
Slip sleeve
active system
2PCS1.1kw motor
Voltage 380V/60HZ three-phase four-wire
Operation Manual
Crescent wrench
产品配置：
维德伺服电机
滚珠丝杆传动
维控PLC控制系统
恒一气动配件
滑差套
主动系统
2PCS1.1kw电机
电压380V/60HZ三相四线
操作手册 月牙扳手
