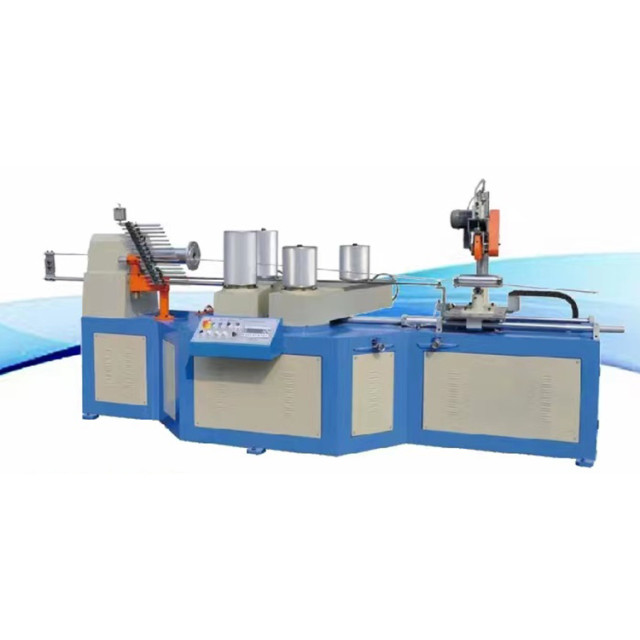

This machine is suitable for the process of the paper tubes for various products such as wrapped film, cloth string,tissue paper and so on.
Three machine heads and two belts are wound around the mold,better balance and faster speed.
Belt tension adjustment is convenient.
This machine is suitable forthe process of the paper tubes for various products such aswrapped film, cloth string,tissue paper and so on.
Three machine heads and two belts are wound around the mold,better balance and faster speed.
Belt tension adjustment is convenient.
Main technical parameters：
|
Model |
3 axis model |
4 axis model |
|
Max production speed |
30-40m/min |
3-20m/min |
|
Max tube diameter |
∅152mm |
∅500mm |
|
Min tube diameter |
∅20mm |
∅76mm |
|
Paper layers |
5-28 |
5-40 |
|
Tube thickness |
3-8MM |
3-25MM |
|
Cutting type |
Single round cutting |
Saw cutting/Single round cutting |
|
Belt winding heads |
3 sets |
4 sets |
|
Winding head angle |
Manuel/Motor |
Manuel/Motor |
|
Host angle |
Manuel/Motor |
Manuel/Motor |
|
Glue stand quantity |
24 |
35-40 |
|
Gluing way |
Single/double side |
Double side |
