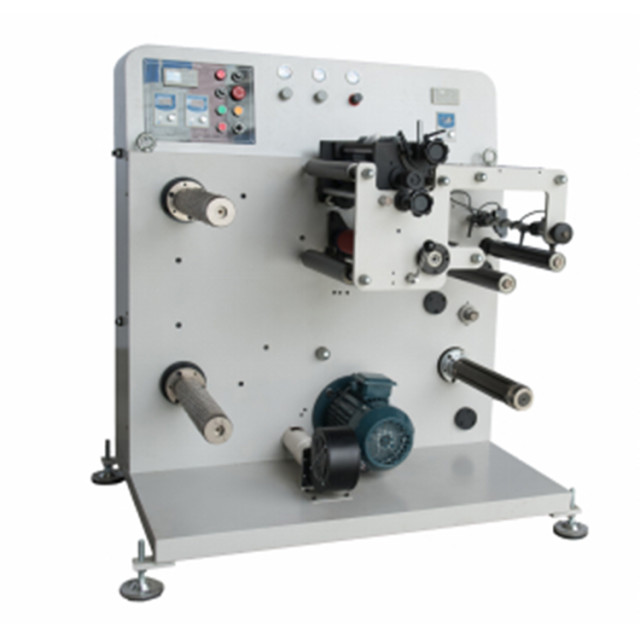

This is a matching product of the automatic die-cutting machine, this machine is suitable for narrow-width paper slitting. It has functions such as automatic meter counting, automatic stop when setting length and quantity, and automatic photoelectric correction control for unwinding. The whole machine has the characteristics of compact structure, fast speed, high efficiency, accurate cutting, simple operation and smooth operation.
Online Inquiry
Technical parameters：
|
Model |
320 type |
450 type |
|
Slitting speed |
180m/min |
180m/min |
|
Maximum width of drum material |
330mm |
450mm |
|
Maximum unwinding diameter |
500mm |
500mm |
|
Maximum winding diameter |
500mm |
500mm |
|
Accuracy rate |
±0.10mm |
±0.10mm |
|
Voltage |
220v |
220v |
|
Main engine power |
2.2kw |
2.2kw |
|
Weight |
600kg |
700kg |
|
Overall dimension |
1400*1000*1400mm |
1500*1100*1400mm |
