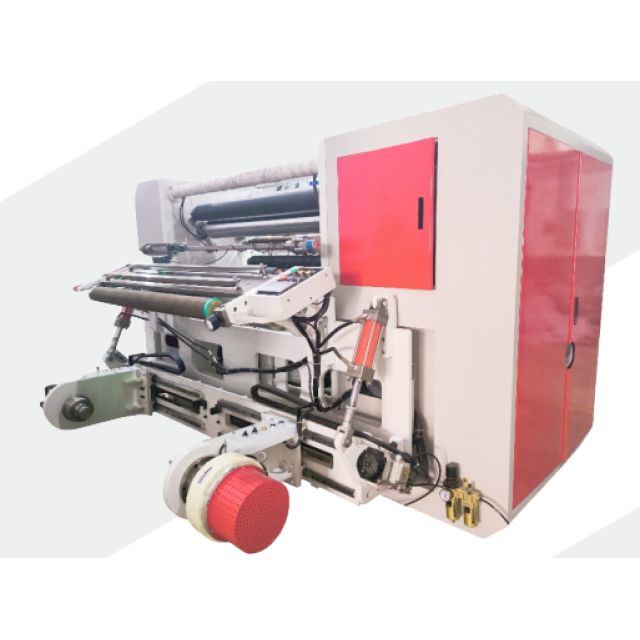

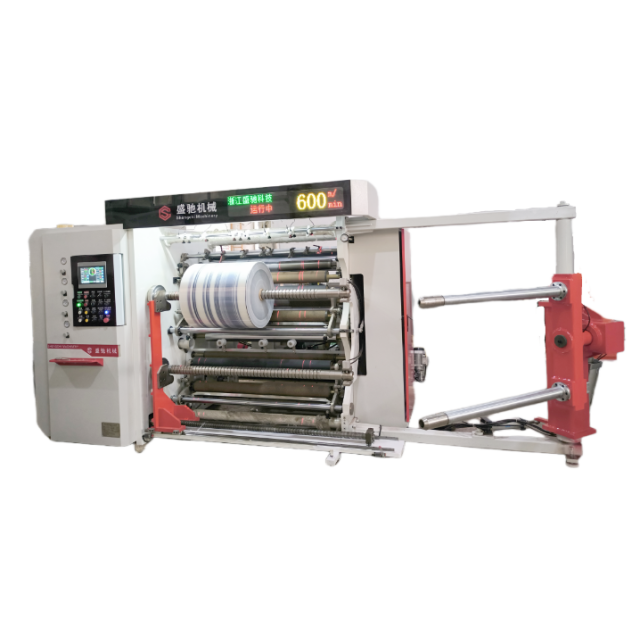

Máquina cortadora y rebobinadora 600m/Min high speed slitter rewinder SCGP-1300

Máquina de corte e rebobinamento. Máquina cortadora y rebobinadora 600m/Min high speed slitter rewinder SCGP-1300

Online Inquiry


1 Material width

1300mm

2 material diameter

950mm

3 Rewinding diameter

600mm

4 paper with inner hole

3# 2# 1#

5 cutting speed

600m/min

6 minimum slits

25-1300MM

7 total power

 26kw

8 size

4500*2200*mm 2200mm


 Máquina cortadora y rebobinadora,Máquina de corte e rebobinamento.

  600m/Min high speed slitter rewinder SCGP-1300


First, roll part

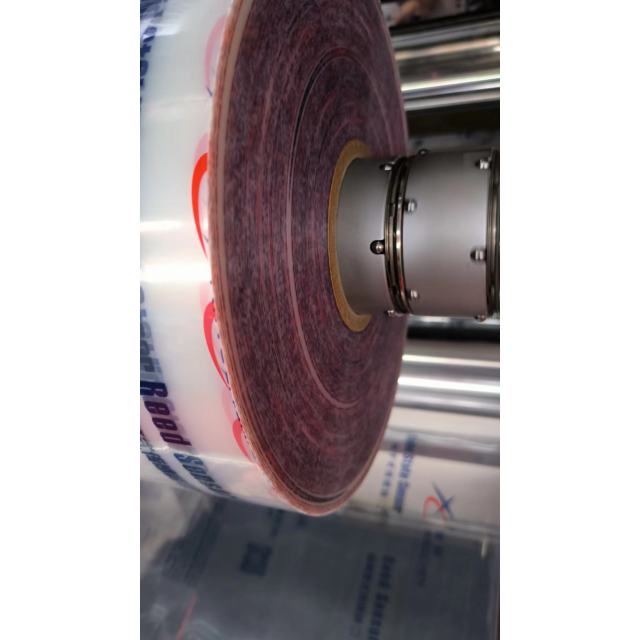

1, unwinding adopts shaftless 3 inch 6 inch pneumatic cone top, locking positioning using hand pull type.



2, the discharge rack through the cylinder/ hydraulic device automatic lifting.



3. Tension is controlled by 20 kg magnetic powder clutch. Automatic detection of coil diameter, can realize the automatic stop of material and no material.





4, the discharge rack is equipped with automatic deviation correction system, and the edge and line can be switched.

5. Unwinding diameter 800mm

Second, the traction part

1, diameter 120mm mirror traction roller.

2, the traction roller motor power of 5.5KW, through different proportions of two synchronous wheel drive, increase the motor speed, thereby reducing the cost of electricity.

3, equipped with a diameter of 120mm passive pressing roller, automatic pressing device.



Three, winding part

1, using 2 slip shaft winding.



2, use two 5.5KW motor supporting inverter drive.

3, the upper and lower shaft assembly roller, so that material winding flat.



4, the press roller to maintain constant pressure, pressure through the precision pressure regulator control.

5, 10 laser lights, infrared to paper tube.

6, machine speed 10 ~ 500 meters per minute

7, the maximum diameter of winding 600mm

8. Waste edge winder including

9. Auto pusher including

10. Rotary unloading sub frame including





Four, cut parts

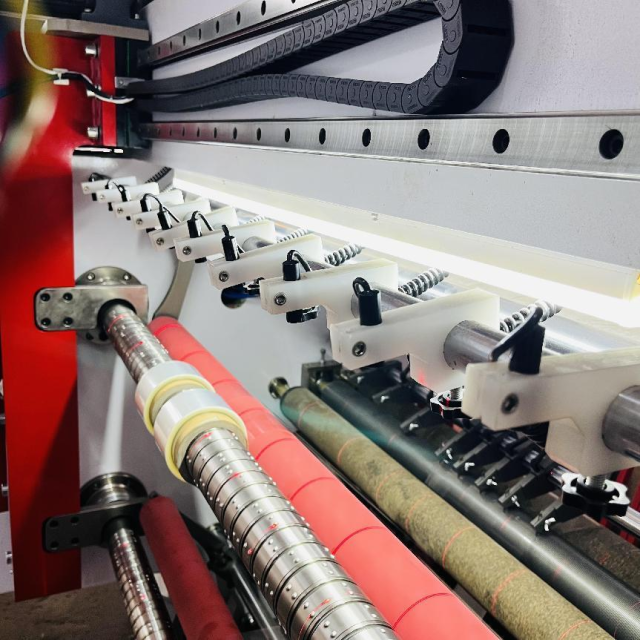

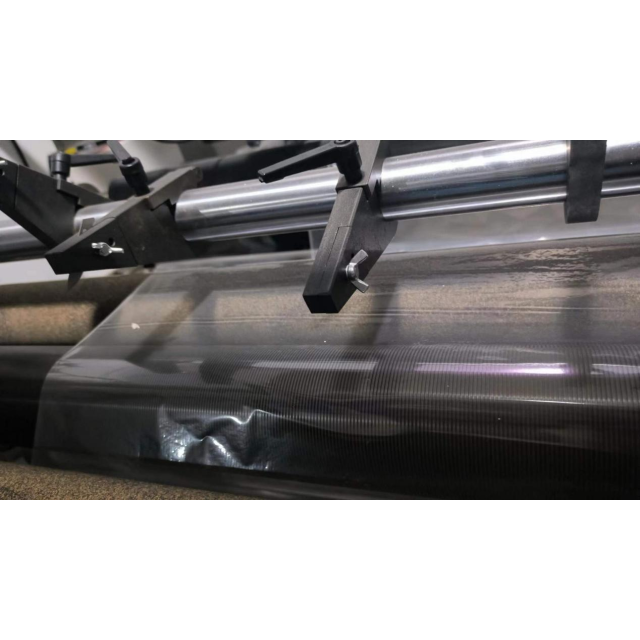

1. 10 flat knives.

2. Automatic up and down cutting shaft.



3. cutting width 40mm ~ 1300mm.



CONFIGURATION



Part name

Model

brand

QTY

Machine wall board

Thikcness
50mm



A pair

Rewind

3 inches
Differential shaft

2 pieces

Main Nip roll

150mm*1400mm

A piece of

Rubber press roll

120mm*1400mm

A piece of

Hard alumina
 guide roller

100mm*1400mm

Six pieces

unwind


10 kg magnetic powder

Wenzhou

A set

Traction motor

5.5KW

Jiangsu Zhima

A set

Winding machine

5.5KW

Two sets

Frequency changer



Kumak

three

Edge blowing machine

1.5KW

Made in China

A set

bearing



NSK

A batch

Pneumatic element



Made in China

A batch

CCD simulation
correction



bat

A set

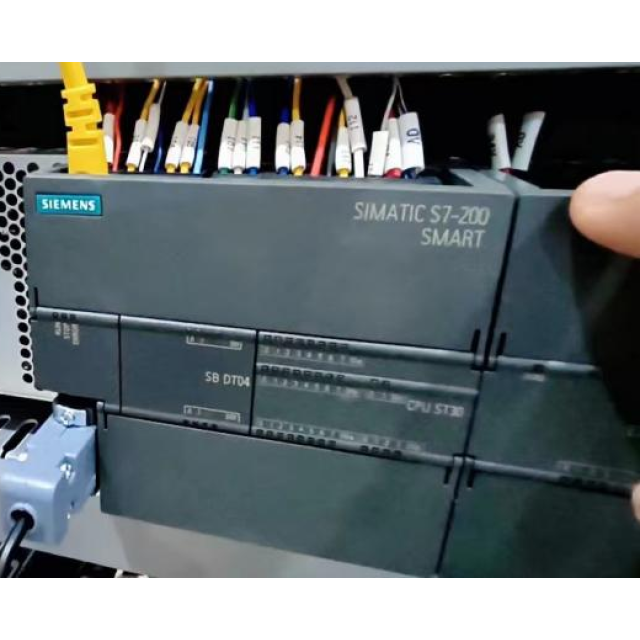

Main control PLC



Siemens

A piece of

10 inch touch screen



Taiwan

Veinview

A piece of

Proximity switch



Japan

A piece of

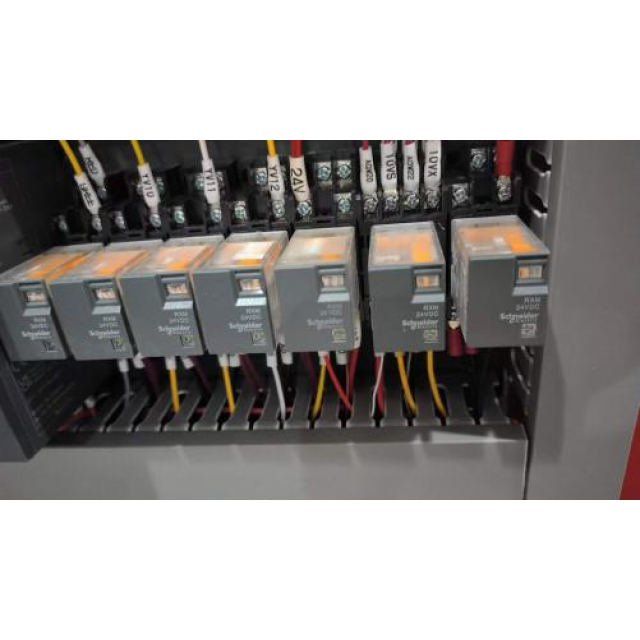

Low-voltage
electrical apparatus



Schneider

A batch

Switching power supply



Delta

A piece of

Precision pressure
 regulator



Domestic SMC

four

Linear guide

HBR35

Taiwan

A set

Laser light



Jiangsu
(Province)

ten
