It is widely used in the machines that has the unwinding and rewinding unit like the printing machine, roll cutting machine,slitting machine,coating machine, laminating machine, bag making machine,etc.
Online InquiryFeatures:
★ Easy operation: taking only 2 seconds of the inflation and deflation to separate and place the tube. Placing the tube is easy, convenient, safe and applicable.
★ Large carrying capacity: The air expansion shaft can becustomised according to the actual machine model; it is made of high-quality steel to increase the carrying capacity.
★ Economical and efficient: The design of the shaftisfor the actural work needs, and can be applied to various types of rolled pipes, such as thick, thin, wide and narrow.
★ Single accessory: The air expand shaft is a single accessory for the winding and unwinding machinery. Each part in its structure has fixed specifications and dimensions and can be disassembled and assembled, making it easy to maintainthus durable.
★ Wide application: As an independently designed part, theair expand shaft ranges from 1 inch to 12 inches. The length and size are determined by the actual needs of the customer. It can be used for strip printing, copy coating, lamination, bag making, paper making and other industrial equipmentor machines from othersuppliers.
★ Professionalism: Our factory specializes in the production ofair expand shafts. We have professional engineering and technical personnel to conduct market research on the design, installation and use of inflatable shafts.
Techinical data:
|
Diameter |
Diameter before air flation |
Diameter after air flation |
|
1‘’ |
∅24 |
∅24-28 |
|
1.5‘’ |
∅36 |
∅40-42 |
|
2‘’ |
∅49 |
∅50-24 |
|
3‘’ |
∅74 |
∅80-82 |
|
4‘’ |
∅99 |
∅104-106 |
|
5‘’ |
∅125 |
∅130-133 |
|
6‘’ |
∅150 |
∅154-156 |
|
8‘’ |
∅200 |
∅206-213 |

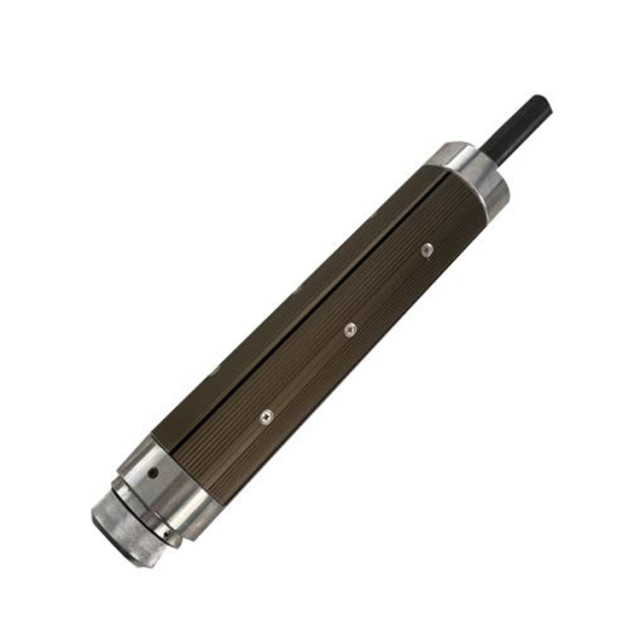

Product images:
