CI Flexo printer 8 Colors

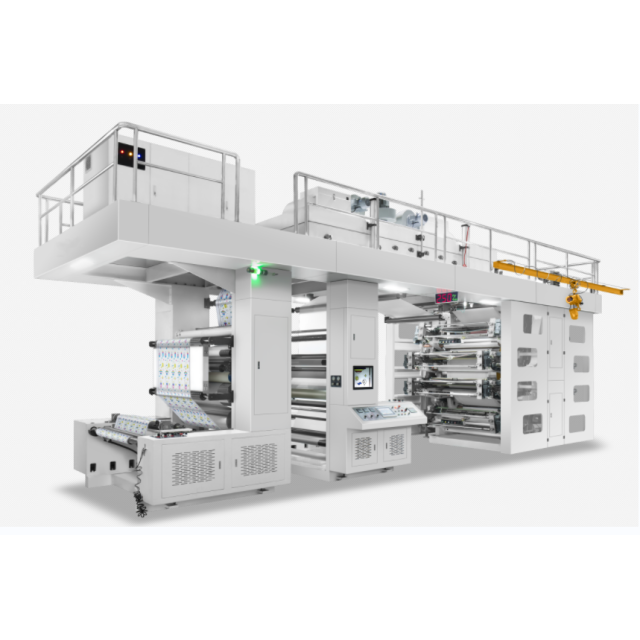

8-color 1200mm CI Flexo Printing Machine
including:

1) Chamber doctor blade with auto ink pump* 8pcs

2) Plate roller 40cm *8pcs.

3) Ceramic Anilox Roller (80--1000LPI) * 8pcs

4) EPC (Ultrasonic web guide) *1pcs

5) Air shaft * 2pcs

6) Hydraulic in & out printing roller

7) Auto hydraulic loading&unloading

8) Auto tension control*2sets

9) PLC+Video inspection

10) Auto-Lubrication system for central drum

11) Color registration adjusting by motor

12) Motor control ceramic roller and plate roller in and out

13) All aluminum rollers are oxidized

14) Crane

15) Servo main motor , Servo rewind motor,Servo traction motor

16) Water cooling system

Online Inquiry



Technical Specification

Model

YTD-81200

Material Feeding Width

1200mm

Max Printing Width

1160mm

Colors

8 colors

Material

PVC.OPP.PE.BOPP.PE.NY.PET.CPP.

Thickness of  plate

1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm

Customized is available

Printing length

Standard is 400mmCustomized is available from 400-800mm

Printing  speed

250m/min

Register precision

±0.1mm

Gear module

1.5mm

Heating method

Electricity heating

Unwind/rewind paper

core 3

Max.unwind/rewind dia.

1000mm

Structure type

Central impressioncentral drum

Gear drive(china)

Container

40HQ*2

The weight

About 22000kg


Part 1  Unwind & Rewind Unit

SN

Item

Qty

Specification


1

Air shaft

2SETS

Roller Dia. 76mm



2

Active rewinding and unwinding

2SETS

1. 2 servo motors control

2. 2 SETS for unwind and rewind

3. 2 swinging arms control the tension



Part 2 transmission

SN

Item

Qty

Specification


1

Main motor

1SET

Servo motor + gear drive



2

The aluminum roller

/

The aluminum roller is dynamically balanced to reduce jumping at high speed



Part 3  Printing Unit

SN

Item

Qty

Specification


1

central drum

1 SET

1. Made from superior alloy

2.Steel and precise dynamic balance and electroplated  treatment

3.Installed the high precision encoder , synchronous the speed

4.Diameter 1.6m

5.central drum with water cooling control

6.Circular runout is within 0.01mm



2

Frame

1SET

1.Made of alloy cast iron with high strength

2.Thickness 100mm



3

Central drum Braking System

1 SET

1. braking in time when there is an abnormality in high-speed working to protect printing group.



4

Plate roller

8 Pcs

1. Standard 400mm for machine

2. Circumference:380-800mm

3. Dynamic balance processing

4. The plate roller cover is fixed by bearings to reduce printing vibration



5

Ceramic anilox roller

8 Pcs

1.Transfer ink evenly

2.Range: 100-1000 LPI

3.Diameter156mm

4.the bearing adopts concentric bearings to reduce circular runout

5.r ink transport bearing is enlarged to improve the service life of the ink transport bearing



6

Chamber doctor blade

8 Pcs

1. Made from Aluminum alloy

2.Fast speed ,not spill the ink

3.Close type to reduce solvent volatilization

4.Teflon coating surface treatment



7

Hydraulic station

1SET

Output hydraulic oil to the hydraulic cylinder on the machine



8

Ink pump

8 Pcs

1.Automatic circle system

2.Double diaphragm pump



9

Automatic lubrication system

1 SET

Lubricate the big gear of the center drive



10

Motor for

registration

8SETS

1.Motorized longitudinal registration and Motorized Transversal

2.check the video inspection to  plc



11

Motor for Forward and backward

8SETS

Motor control printing group to move forward or backward



12

The traction roller

2 pcs

1. adopts double-roller design with water-cooling system to prevent anti-sticking when printing breathable film



2. The tension of the printing group is more stable



13

Crane

1SET

It’s easy to lift and down the printing rollers and anilox rollers.





14

PLC control panel

1SET

Touch panel



15

Video inspection

1SET

Check the printing quality on the video screen



16

Remoter

2SETS

One control the crane

One for adjust the plate roller



17

Cooling chiller system +double wall central drum

1SET

central drum double wall assort with the chiller , the water running and recycle inside of the central drum,and keep the surface temperature 30ºC  (the supplier need 90 days make the double wall central drum)




Part 4 Drying Unit

SN

Item

Qty

Specification


1

Top main oven

1SET

1. Air return design, frequency conversion drive, automatic adjustment of air volume and temperature, energy saving and convenient



2. Equipped with an exhaust fan to reduce the concentration of voc produced by printing in the workshop







2

Color group oven

8SETS

1. The structure adopts the Coanda effect bellows, and at the same time controls the air volume in and out to keep the bellows dry.

2. 2. The bellows adopts a closed design to avoid dry plates.






Part 5  Electrical appliances

SN

Item

Qty

Specification


1

Main motor

1SET

Servo motor



2

Crane control

1SET

/



3

relay

1SET

/


4

PLC control

1SET

/



5

Converter

1SET

/





Main Component

Main Motor

Servo motor

Bearing

NSK

Link operation motor

Maili

Control speed motor

Inverter of main motor

Delta

Contactor

Schneider

Relay



Schneider

Ceramic anilox roller

Yuncheng

Auto tension control

Dongdeng

Urgent Stop Switch

Schneider

Magnetic power

Haitai

Button Switch

Schneider

Counter

CHNT

EPC system

ARISE

Video Inspection

Kesai



Package







Iron pallets

Wooden boxes

FILM
